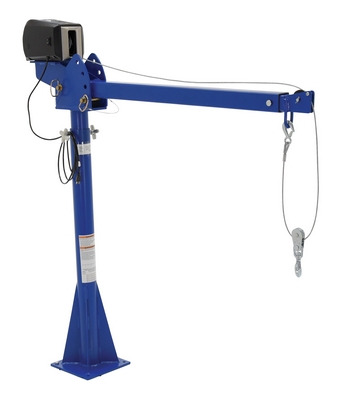

Steel AC Powered Jib Crane CSA Compliant 4-7 Ft. Boom 2,000 Lb. Capacity Blue

AC-Powered Power Jib Crane Lift for Overhead Load Lifting and Controlled Positioning, 2,000 lb. Capacity, Blue Finish – Model WTJ-20-4-AC-CSA
A power lift Jib crane is designed for material handling applications on docks, in warehouses or in truck beds. This intermittent unit uses crane feature rotation hand brakes that offer unlimited positioning. The mast mounts permanently. Boom adjusts in one (1) foot increments and can be positioned at four (4) elevations. Fingertip switch to raise and lower hook. Folds for storage. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.
Product Status
Available QuickShip Non-Returnable
Key Features
  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
New Product Images Coming Soon - Design change on base
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   WTJ-20 Series Power Lift Jib Cranes Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 236 lbs
Assembled Size 18.6875"W x 87.5"L x 73"H
Total Ship Weight 275 lbs
Package 1 Size 29"W x 66"D x 17"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,000
Boom Reach (in.) 51-1/4 to 87-1/4
Boom Height (in.) 59-1/2 to 106-1/2
Rotation Degree 360
Boom Adjustment Increments (in.) 12
Cable Length (ft.) 25
Cable Diameter (in.) 7/32
AC (volts) 120
Horsepower (HP) 1/3
Mounting Plate Length (in.) 12
Mounting Plate Width (in.) 12
Capacity at 58-3/8" Fully Retracted (lbs.) 1,100
Capacity at 58-3/8" Second Position (lbs.) 800
Capacity at 58-3/8" Third Position (lbs.) 600
Capacity at 58-3/8" Fully Extended (lbs.) 250
Capacity at 77-1/8" Fully Retracted (lbs.) 1,500
Capacity at 77-1/8" Second Position (lbs.) 1,200
Capacity at 77-1/8" Third Position (lbs.) 1,000
Capacity at 77-1/8" Fully Extended (lbs.) 600
Capacity at 93-5/16" Fully Retracted (lbs.) 1,850
Extended Product Details

Marketing Specs.

MFG Model # (Series)
WTJ-20-4-AC-CSA
Product Name
Steel AC Powered Jib Crane CSA Compliant 4-7 Ft. Boom 2,000 Lb. Capacity Blue
UPC
691215096867
GTIN
00691215096867
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Jibs
Taxonomy 4
Truck Mounted
Assembled Depth (in.)
87.5
Assembled Width(in.)
18.6875
Assembled Height(in.)
73
Assembled Weight(lbs.)
236
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
66
Package Width (in.)
29
Package Height (in.)
17
Package Weight (in.)
275
Subclass
9
Freight Class
100
NMFC Code
Machinery Group
NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101652
HTSUS Number
8426.91.0000
USMCA HS
8426.91
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: WTJ-20-4-AC-CSA

WTJ-20-4-AC-CSA

Steel AC Powered Jib Crane CSA Compliant 4-7 Ft. Boom 2,000 Lb. Capacity Blue

A power lift Jib crane is designed for material handling applications on docks, in warehouses or in truck beds. This intermittent unit uses crane feature rotation hand brakes that offer unlimited positioning. The mast mounts permanently. Boom adjusts in one (1) foot increments and can be positioned at four (4) elevations. Fingertip switch to raise and lower hook. Folds for storage. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy

Core Data

Assembled Weight: 236 Assembled Size: 18.6875"W x 87.5"L x 73"H Color: Blue
Total Ship Weight: 275 Package 1 Size: 29"W x 66"D x 17"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,000
Boom Reach (in.): 51-1/4 to 87-1/4
Boom Height (in.): 59-1/2 to 106-1/2
Rotation Degree: 360
Boom Adjustment Increments (in.): 12
Cable Length (ft.): 25
Cable Diameter (in.): 7/32
AC (volts): 120
Horsepower (HP): 1/3
Mounting Plate Length (in.): 12
Mounting Plate Width (in.): 12
Capacity at 58-3/8" Fully Retracted (lbs.): 1,100
Capacity at 58-3/8" Second Position (lbs.): 800
Capacity at 58-3/8" Third Position (lbs.): 600
Capacity at 58-3/8" Fully Extended (lbs.): 250
Capacity at 77-1/8" Fully Retracted (lbs.): 1,500
Capacity at 77-1/8" Second Position (lbs.): 1,200
Capacity at 77-1/8" Third Position (lbs.): 1,000
Capacity at 77-1/8" Fully Extended (lbs.): 600
Capacity at 93-5/16" Fully Retracted (lbs.): 1,850
