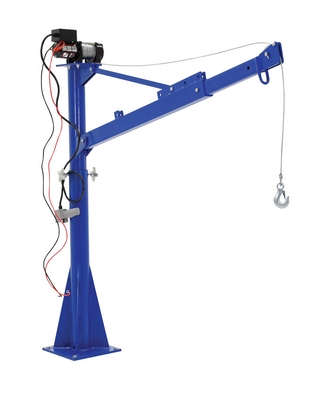

Steel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Blue

DC-Powered Floor Jib Crane for Overhead Load Lifting and Controlled Positioning, 1,500 lb. Capacity
A power lift Jib crane is designed for material handling applications on docks, in warehouses or in truck beds. This lift jib crane is the economical answer to your material handling problems. It offers light-duty, intermittent use. Locking manual rotation. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.
Product Status
Available QuickShip
Key Features
  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
New Product Images Coming Soon - Design change on base
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Series WTJ-E Vehicle Mounted Jib Cranes Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 200 lbs
Assembled Size 13.5"W x 51.0625"L x 65.6875"H
Total Ship Weight 213 lbs
Package 1 Size 29"W x 65"D x 17"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,500
Boom Reach (in.) 43-1/16 to 66-3/4
Boom Height (in.) 47-1/8 to 73-5/16
Rotation Degree 360
DC (volts) 12
Horsepower 1
Wire Rope Length (ft.) 46
Wire Rope Diameter (in.) 3/16
Mounting Plate Length (in.) 12
Mounting Plate Width (in.) 12
1,500 lb. Capacity at Boom Extension (in.) 27-13/16
Capacity at 47-1/8" Fully Retracted (lbs.) 650
Capacity at 47-1/8" Mid-Position (lbs.) 300
Capacity at 47-1/8" Fully Extended (lbs.) 200
Capacity at 56-3/16" Fully Retracted (lbs.) 1100
Capacity at 56-3/16" Mid-Position (lbs.) 650
Capacity at 56-3/16" Fully Extended (lbs.) 550
Capacity at 64-3/4" Fully Retracted (lbs.) 1,250
Capacity at 64-3/4" Mid-Position (lbs.) 850
Capacity at 64-3/4" Fully Extended (lbs.) 650
Overall Width (in.) 13-1/2
Overall Retracted Length (in.) 51-1/16
Overall Height (in.) 65-11/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
WTJ-E-15-3-DC
Product Name
Steel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Blue
UPC
691215048378
GTIN
00691215048378
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Jibs
Taxonomy 4
Truck Mounted
Assembled Depth (in.)
51.0625
Assembled Width(in.)
13.5
Assembled Height(in.)
65.6875
Assembled Weight(lbs.)
200
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
65
Package Width (in.)
29
Package Height (in.)
17
Package Weight (in.)
213
Subclass
9
Freight Class
100
NMFC Code
Machinery Group
NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101652
HTSUS Number
8426.91.0000
USMCA HS
8426.91
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: WTJ-E-15-3-DC

WTJ-E-15-3-DC

Steel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Blue

A power lift Jib crane is designed for material handling applications on docks, in warehouses or in truck beds. This lift jib crane is the economical answer to your material handling problems. It offers light-duty, intermittent use. Locking manual rotation. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy

Core Data

Assembled Weight: 200 Assembled Size: 13.5"W x 51.0625"L x 65.6875"H Color: Blue
Total Ship Weight: 213 Package 1 Size: 29"W x 65"D x 17"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Boom Height (in.): 47-1/8 to 73-5/16
Rotation Degree: 360
DC (volts): 12
Horsepower: 1
Wire Rope Length (ft.): 46
Wire Rope Diameter (in.): 3/16
Mounting Plate Length (in.): 12
Mounting Plate Width (in.): 12
1,500 lb. Capacity at Boom Extension (in.): 27-13/16
Capacity at 47-1/8" Fully Retracted (lbs.): 650
Capacity at 47-1/8" Mid-Position (lbs.): 300
Capacity at 47-1/8" Fully Extended (lbs.): 200
Capacity at 56-3/16" Fully Retracted (lbs.): 1100
Capacity at 56-3/16" Mid-Position (lbs.): 650
Capacity at 56-3/16" Fully Extended (lbs.): 550
Capacity at 64-3/4" Fully Retracted (lbs.): 1,250
Capacity at 64-3/4" Mid-Position (lbs.): 850
Capacity at 64-3/4" Fully Extended (lbs.): 650
Overall Width (in.): 13-1/2
Overall Retracted Length (in.): 51-1/16
Overall Height (in.): 65-11/16
