  All Products   Overhead Lifting   Engine Hoists & Floor Cranes   Power Lift Jib Cranes WTJ-E-15-3-DC-GAL
Product Image

Visual Reference

WTJ-E-15-3-DC-GAL
WTJ-E-15-3-DC-GAL
WTJ-E-15-3-DC-GAL
WTJ-E-15-3-DC-GAL
WTJ-E-15-3-DC-GAL
WTJ-E-15-3-DC-GAL
WTJ-E-15-3-DC-GAL

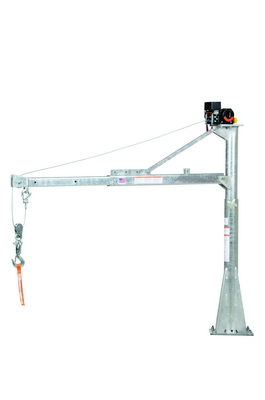

Galvanized Steel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Gray

Galvanized DC-Powered Floor Jib Crane for Overhead Load Lifting and Controlled Positioning, 1,500 lb. Capacity
The Jib crane is ideal for lifting objects in a variety of areas. With a steel construction and a galvanized finish, the jib crane also features a telescopic boom with an adjustable length and height, manual boom rotation, powered cable winch for easy lifting and maneuvering, and a plug in handheld winch control. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.
Product Status
Available QuickShip Non-Returnable
Key Features
  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy
New Product Images Coming Soon - Design change on base
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Series WTJ-E Vehicle Mounted Jib Cranes Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 200 lbs
Assembled Size 13.5"W x 51.0625"L x 65.6875"H
Total Ship Weight 213 lbs
Package 1 Size 29"W x 65"D x 17"H
Color / Finish Gray
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,500
Boom Reach (in.) 43-1/16 to 66-3/4
Boom Height (in.) 47-1/8 to 73-5/16
Rotation Degree 360
DC (volts) 12
Horsepower 1
Wire Rope Length (ft.) 46
Wire Rope Diameter (in.) 3/16
Mounting Plate Length (in.) 12
Mounting Plate Width (in.) 12
1,500 lb. Capacity at Boom Extension (in.) 27-13/16
Capacity at 47-1/8" Fully Retracted (lbs.) 650
Capacity at 47-1/8" Mid-Position (lbs.) 300
Capacity at 47-1/8" Fully Extended (lbs.) 200
Capacity at 56-3/16" Fully Retracted (lbs.) 1100
Capacity at 56-3/16" Mid-Position (lbs.) 650
Capacity at 56-3/16" Fully Extended (lbs.) 550
Capacity at 64-3/4" Fully Retracted (lbs.) 1,250
Capacity at 64-3/4" Mid-Position (lbs.) 850
Capacity at 64-3/4" Fully Extended (lbs.) 650
Overall Width (in.) 13-1/2
Overall Retracted Length (in.) 51
Overall Height (in.) 65-11/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
WTJ-E-15-3-DC-GAL
Product Name
Galvanized Steel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Gray
UPC
691215102896
GTIN
00691215102896
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Jibs
Taxonomy 4
Truck Mounted
Assembled Depth (in.)
51.0625
Assembled Width(in.)
13.5
Assembled Height(in.)
65.6875
Assembled Weight(lbs.)
200
Color/Finish
Gray
Material
Galvanized Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
65
Package Width (in.)
29
Package Height (in.)
17
Package Weight (in.)
213
Subclass
9
Freight Class
100
NMFC Code
Machinery Group
NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101652
HTSUS Number
8426.30.0000
USMCA HS
8426.30
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: WTJ-E-15-3-DC-GAL

WTJ-E-15-3-DC-GAL

Galvanized Steel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Gray

The Jib crane is ideal for lifting objects in a variety of areas. With a steel construction and a galvanized finish, the jib crane also features a telescopic boom with an adjustable length and height, manual boom rotation, powered cable winch for easy lifting and maneuvering, and a plug in handheld winch control. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.

  • Powered cable winch makes lifting and maneuvering easy
  • Boom telescopes in and out for greater reach and versatility
  • 360 Degrees swivel design allows for maximum accessibility
  • Pre-drilled base plate makes mounting quick and easy

Core Data

Assembled Weight: 200 Assembled Size: 13.5"W x 51.0625"L x 65.6875"H Color: Gray
Total Ship Weight: 213 Package 1 Size: 29"W x 65"D x 17"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,500
Boom Reach (in.): 43-1/16 to 66-3/4
Boom Height (in.): 47-1/8 to 73-5/16
Rotation Degree: 360
DC (volts): 12
Horsepower: 1
Wire Rope Length (ft.): 46
Wire Rope Diameter (in.): 3/16
Mounting Plate Length (in.): 12
Mounting Plate Width (in.): 12
1,500 lb. Capacity at Boom Extension (in.): 27-13/16
Capacity at 47-1/8" Fully Retracted (lbs.): 650
Capacity at 47-1/8" Mid-Position (lbs.): 300
Capacity at 47-1/8" Fully Extended (lbs.): 200
Capacity at 56-3/16" Fully Retracted (lbs.): 1100
Capacity at 56-3/16" Mid-Position (lbs.): 650
Capacity at 56-3/16" Fully Extended (lbs.): 550
Capacity at 64-3/4" Fully Retracted (lbs.): 1,250
Capacity at 64-3/4" Mid-Position (lbs.): 850
Capacity at 64-3/4" Fully Extended (lbs.): 650
Overall Width (in.): 13-1/2
Overall Retracted Length (in.): 51
Overall Height (in.): 65-11/16
