Steel Hitch Mounted Truck Jib Crane With Magnet 600 Lb. Capacity Black

Hitch Mounted Jib Crane for Overhead Load Lifting and Controlled Positioning, 600 lb. Capacity

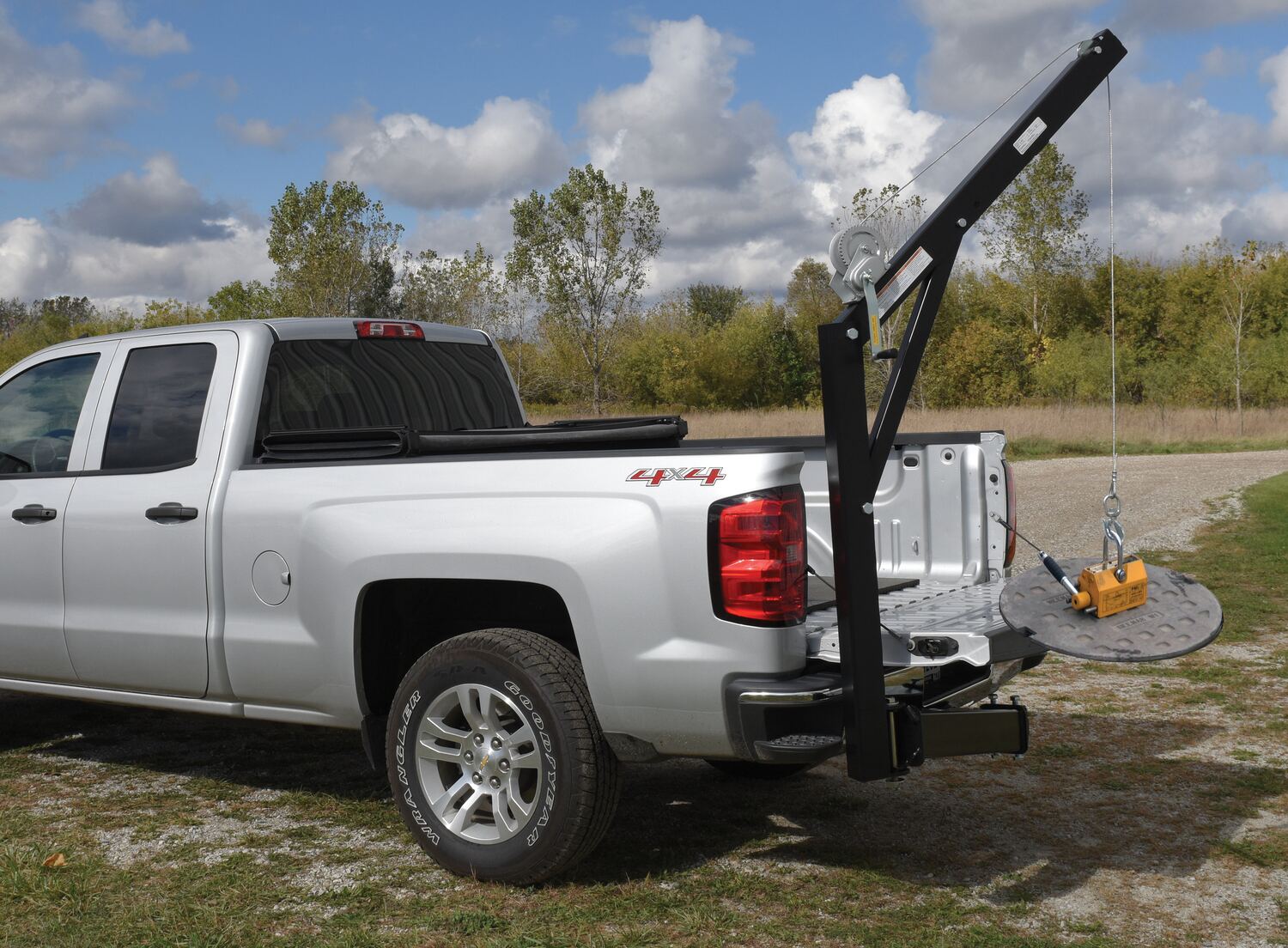

A hitch-mounted truck Jib crane with magnet easily mounts in standard class III or higher 2" receivers. The jib may be adjusted or leveled to best fit the setting and the users needs. Maximum uniform lifting capacity is 600 pounds. Manual hand brake winch with a lifting hook and 15 feet of cable is included. The industrial magnet includes a clevis for a simpler lifting and lowering process.
Product Status
Available QuickShip
Key Features
  • Requires no modifications to truck when used with a 2 inch receiver
  • Magnet is activated or deactivated by a simple lever rotation
  • Offset design allows for full use of tailgate while winch is in operation
  • Crane may be installed on either side of the truck bed
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Hitch Mounted Truck Jib Crane Model WTJ-HITCH Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 134 lbs
Assembled Size 19.625"W x 44.5625"L x 84.5625"H
Total Ship Weight 168 lbs
Package 1 Size 40"W x 48"D x 14"H
Color / Finish Black
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 600
Mounts to Receiver Class III or Higher 2" Receiver
Boom Reach (in.) 47-1/2
Maximum Boom Height (in.) 84-5/8
Cable Length (ft.) 15
Cable Diameter (in.) 3/16
Overall Width (in.) 19-13/16
Overall Length (in.) 44-1/2
Overall Height (in.) 74-5/16
Maximum Height (in.) 84-5/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
WTJ-HITCH-ML-6
Product Name
Steel Hitch Mounted Truck Jib Crane With Magnet 600 Lb. Capacity Black
UPC
691215375986
GTIN
00691215375986
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Jibs
Taxonomy 4
Truck Mounted
Assembled Depth (in.)
44.5625
Assembled Width(in.)
19.625
Assembled Height(in.)
84.5625
Assembled Weight(lbs.)
134
Color/Finish
Black
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
14
Package Weight (in.)
168
Subclass
9
Freight Class
100
NMFC Code
Machinery Group
NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101652
HTSUS Number
8426.91.0000
USMCA HS
8426.91
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: WTJ-HITCH-ML-6

WTJ-HITCH-ML-6

Steel Hitch Mounted Truck Jib Crane With Magnet 600 Lb. Capacity Black

A hitch-mounted truck Jib crane with magnet easily mounts in standard class III or higher 2" receivers. The jib may be adjusted or leveled to best fit the setting and the users needs. Maximum uniform lifting capacity is 600 pounds. Manual hand brake winch with a lifting hook and 15 feet of cable is included. The industrial magnet includes a clevis for a simpler lifting and lowering process.

  • Requires no modifications to truck when used with a 2 inch receiver
  • Magnet is activated or deactivated by a simple lever rotation
  • Offset design allows for full use of tailgate while winch is in operation
  • Crane may be installed on either side of the truck bed

Core Data

Assembled Weight: 134 Assembled Size: 19.625"W x 44.5625"L x 84.5625"H Color: Black
Total Ship Weight: 168 Package 1 Size: 40"W x 48"D x 14"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 600
Mounts to Receiver: Class III or Higher 2" Receiver
Boom Reach (in.): 47-1/2
Maximum Boom Height (in.): 84-5/8
Cable Length (ft.): 15
Cable Diameter (in.): 3/16
Overall Width (in.): 19-13/16
Overall Length (in.): 44-1/2
Overall Height (in.): 74-5/16
Maximum Height (in.): 84-5/8
