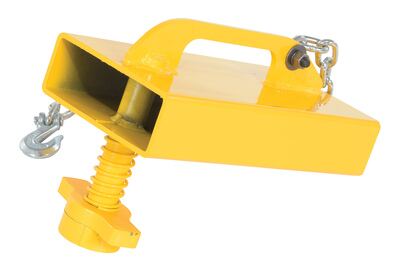

Steel Tow Bar Pocket 8 In. Width For Yard Ramps Yellow

Tow Bar Pocket for Trailer Loading, Dock Access, and Material Transfer, 8,000 lb. Capacity with 8 in.

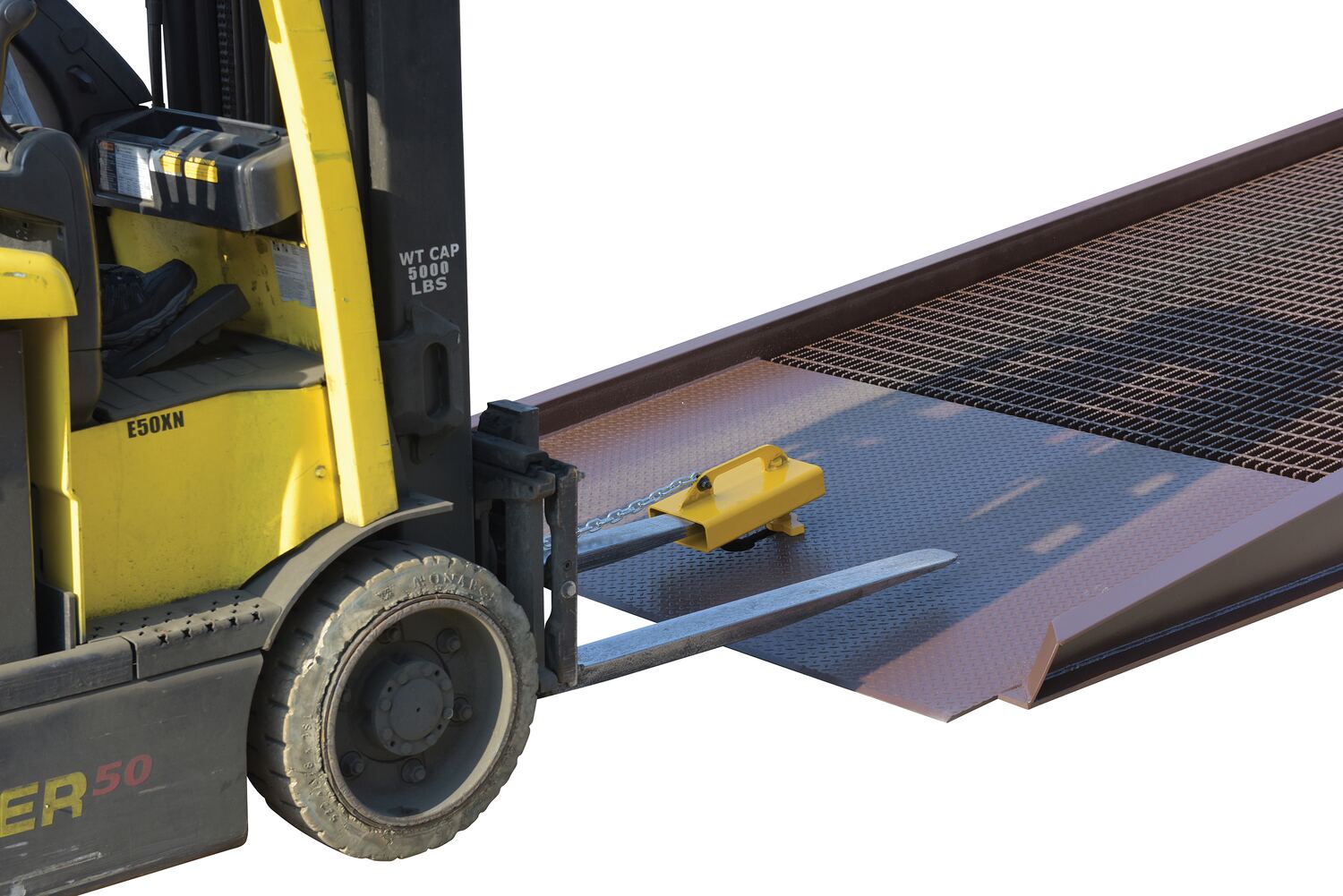

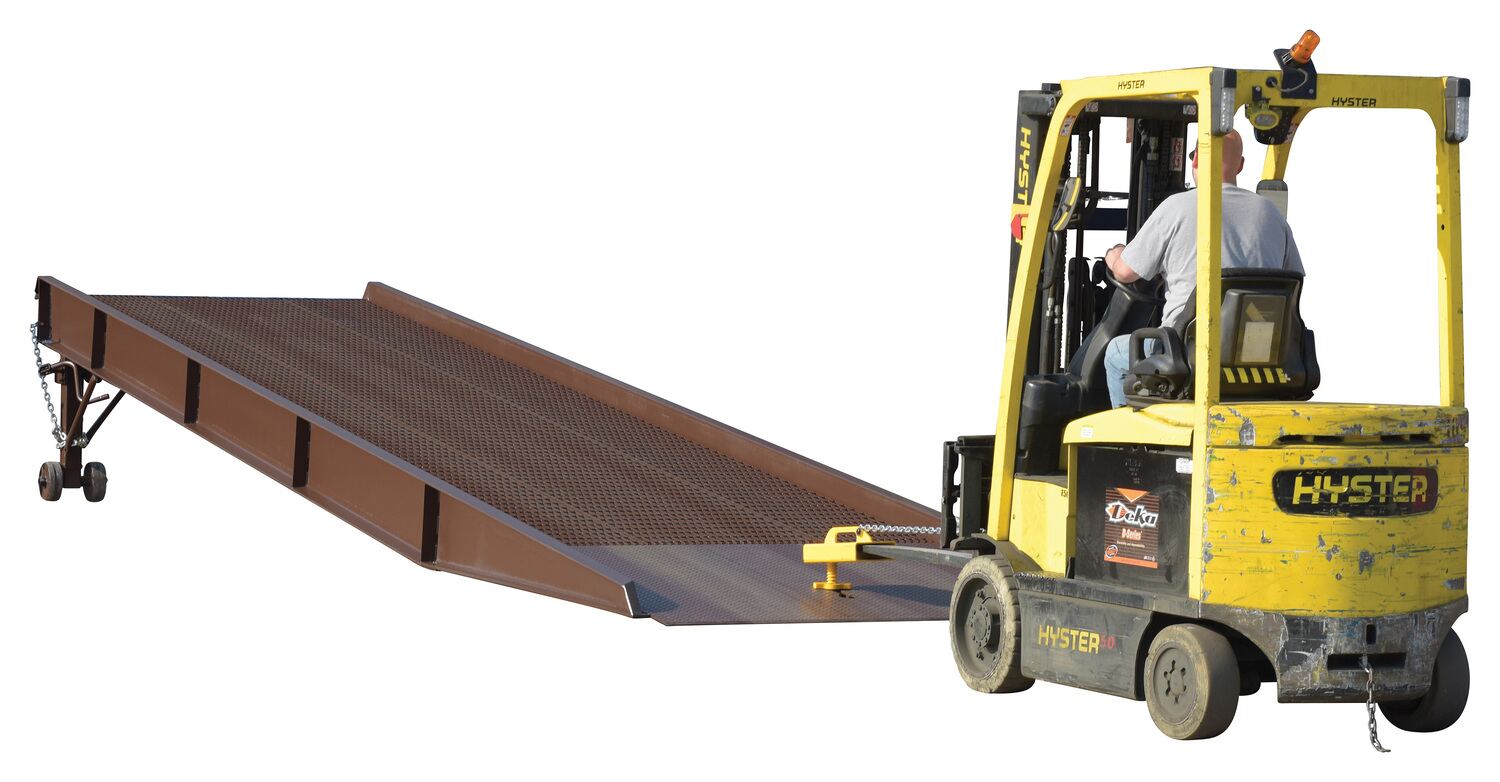

The tow bar pocket is a perfect asset to the yard ramps. The pocket is easily accessible and attachable to the main ramp. Once in place and secured, the pocket can then be used to a assist in moving the ramp to a variety of areas.
Product Status
Available Non-Returnable
Key Features
  • A great option for the portable yard ramp
  • Designed to assist the guiding of ramps during movement
  • Steel structure provides substantial stability
  • Fork pocket limits damage to ramp while transferring
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Steel Yard Ramps   90 Days Warranty
Product Data

Core Data

Assembled Weight 34 lbs
Assembled Size 8"W x 15"L x 11.375"H
Total Ship Weight 35 lbs
Package 1 Size 8"W x 15"D x 12"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Fork Pocket Width/Height (in.) 7-1/2 x 2-1/2
Chain with Hook Length (in.) 56
Extended Product Details

Marketing Specs.

MFG Model # (Series)
YR-TB-P
Product Name
Steel Tow Bar Pocket 8 In. Width For Yard Ramps Yellow
UPC
691215116268
GTIN
00691215116268
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Towing Bases
Assembled Depth (in.)
15
Assembled Width(in.)
8
Assembled Height(in.)
11.375
Assembled Weight(lbs.)
34
Color/Finish
Yellow
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
Y
Assembly
Assembled
Compatible Products
YR-16-7230, YR-16-7236, YR-16-8430, YR-16-8436, YR-20-7330, YR-20-7336, YR-20-8530, YR-20-8536, YR-25-7330, YR-25-7336, YR-25-8530, YR-25-8536, YR-30-7330, YR-30-7336, YR-30-8530, YR-30-8536, YRD-16-7236-H, YRD-16-7236-M, YRD-16-8436-H, YRD-16-8436-M, YRD-20-7336-H, YRD-20-7336-M, YRD-20-8536-H, YRD-20-8536-M, YRD-25-7336-H, YRD-25-7336-M, YRD-25-8536-H, YRD-25-8536-M, YRD-30-7336-H, YRD-30-7336-M, YRD-30-8536-H, YRD-30-8536-M, YRDS-16-7236-H, YRDS-16-7236-M, YRDS-16-8536-H, YRDS-16-8536-M, YRDS-20-8536-H, YRDS-20-8536-M

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
15
Package Width (in.)
8
Package Height (in.)
12
Package Weight (in.)
35
Freight Class
150
NMFC Code
Ramps mobile freight loading NOI not dockboards
NMFC Number
168710
LTL Freight
LTL Palletized
UNSPSC
25174803
HTSUS Number
8431.31.0060
USMCA HS
8431.31
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning
