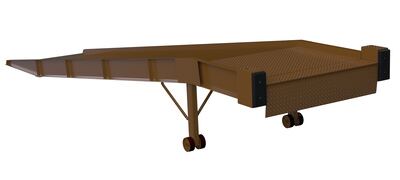

Steel Yard Ramp Mechanical Dock Leveler 84 In. x 36 Ft. 16,000 lb. Capacity Earth Tone Brown

Portable Steel Yard Ramp for Trailer Loading, Dock Access, and Material Transfer, 16,000 lb. Capacity with 84 in., Earth Tone Brown Finish – Model YRD-16-8436-M
The portable steel Yard Ramp quickly loads and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites. A manual hand crank design for easy one (1) person height adjustment. The standard features include: positive traction surface design, safety locking chains, rubber bumpers and fork positioning loop. Steel wheels included for quick maneuvering and portability of unit. Painted neutral earth-tone brown.
Product Status
Available Non-Returnable Flatbed Required
Key Features
  • Steel side curbs prevent fork truck run-off
  • Overlap style lip with safety chains secures ramp to trailer
  • Open grating design allows snow, ice and rain to fall through
  • Included a mechanical leveler for a perfect transition
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 6775 lbs
Assembled Size 84"W x 432"L x 46"H
Total Ship Weight 6775 lbs
Package 1 Size 84"W x 432"D x 50"H
Color / Finish Earth Tone Brown
Freight Type Flatbed Required

Additional Attributes

Uniform Capacity (lb.) 16,000
Usable Ramp Width (in.) 78
Dock Leveler Width (in.) 75
Caster Material Steel
Caster Diameter (in.) 8-5/8
Caster Width (in.) 3-5/8
Safety Curb (in.) 4
Usable Lip Support Edge Length (in.) 13-1/2
Lowered Height (in.) 45
Raised Height (in.) 62
Straight Ramp (in.) 360
Level Off (in.) 72
Extended Product Details

Marketing Specs.

MFG Model # (Series)
YRD-16-8436-M
Product Name
Steel Yard Ramp Mechanical Dock Leveler 84 In. x 36 Ft. 16,000 lb. Capacity Earth Tone Brown
UPC
691215102698
GTIN
00691215102698
Taxonomy 1
Material Handling
Taxonomy 2
Loading Dock Equipment
Taxonomy 3
Ramps & Accessories
Taxonomy 4
Yard Ramps
Assembled Depth (in.)
432
Assembled Width(in.)
84
Assembled Height(in.)
46
Assembled Weight(lbs.)
6775
Color/Finish
Earth Tone Brown
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
Y
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
432
Package Width (in.)
84
Package Height (in.)
50
Package Weight (in.)
6775
Freight Class
150
NMFC Code
Ramps mobile freight loading NOI not dockboards
NMFC Number
168710
LTL Freight
Flatbed Required
UNSPSC
24101803
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: YRD-16-8436-M

YRD-16-8436-M

Steel Yard Ramp Mechanical Dock Leveler 84 In. x 36 Ft. 16,000 lb. Capacity Earth Tone Brown

The portable steel Yard Ramp quickly loads and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites. A manual hand crank design for easy one (1) person height adjustment. The standard features include: positive traction surface design, safety locking chains, rubber bumpers and fork positioning loop. Steel wheels included for quick maneuvering and portability of unit. Painted neutral earth-tone brown.

  • Steel side curbs prevent fork truck run-off
  • Overlap style lip with safety chains secures ramp to trailer
  • Open grating design allows snow, ice and rain to fall through
  • Included a mechanical leveler for a perfect transition

Core Data

Assembled Weight: 6775 Assembled Size: 84"W x 432"L x 46"H Color: Earth Tone Brown
Total Ship Weight: 6775 Package 1 Size: 84"W x 432"D x 50"H Freight: Flatbed Required

Specifications

Uniform Capacity (lb.): 16,000
Usable Ramp Width (in.): 78
Dock Leveler Width (in.): 75
Caster Material: Steel
Caster Diameter (in.): 8-5/8
Caster Width (in.): 3-5/8
Safety Curb (in.): 4
Usable Lip Support Edge Length (in.): 13-1/2
Lowered Height (in.): 45
Raised Height (in.): 62
Straight Ramp (in.): 360
Level Off (in.): 72
